LFP Series
Voltage: 12 VDC & 24 VDC
Capacity: 90Wh to 3.84kWh
Capacity: 90Wh to 3.84kWh
CellWatt LFP Series 12V/24V lithium iron phosphate battery pack is designed and manufactured with features of high energy density, safe and reliable, long service life, etc. With its unique advantages, it is widely used in caravans, tourist coaches, electric two-wheelers, tricycles, emergency lights, security monitoring, and other power supply equipment.
The universal dimensions with excellent performance provide the user with an ideal drop-in replacement solution for the traditional lead-acid battery.
The universal dimensions with excellent performance provide the user with an ideal drop-in replacement solution for the traditional lead-acid battery.
Intelligent Battery Management System
- In-house R&D innovative BMS provides various protections, balance and monitoring via Bluetooth
A Drop in Replacement & Smart Sustainable Solution for Lead-acid, AGM & Gel Batteries
- It is composed of LiFePo4 battery cells in series and parallel, which has the characters of good safety performance, high energy density and long cycle life.
- Using laser welding craft, with high degree of automation, low internal resistance, high energy efficiency, to ensure the welding quality.
- Supports 4pcs in series connection for 12Vdc platform, 2pcs in series for 24Vdc platform, which provides a wide range of applications.
- Built-in intelligent BMS, optimizes the performance and safety of the battery by automatically balancing cells and protecting them from over charge, over discharge, over current, short circuit, high and low temperature protection functions, graded alarm and wireless monitoring functions.
- Using the lithium-ion battery, green and eco-friendly, low lifetime cost.
- Independently developed products, we can arrange experienced engineers to provide technical support
- Customized solutions can be provided according to the user scenarios.
Features & Benefits
Up to 10 Times Life
The life span of our lithium battery is 10 times longer than lead acid battery.
60% Faster Charge
Our batteries can be charged to 100% full in one hour
70% Lighter in Weight
Lithium-ion batteries are one-third the weight of lead acid batteries
Maintenance Free
Maintenance free or automatic repair
Built In Protection
Our lithium batteries have a built in Battery Management System (BMS)
Safe Battery
No potential safety hazard of explosions and fires
100% DOD
Our battery will perform for over 2,000 cycles at 100% DOD, compared withonly 500 cycles at 80% DOD of a lead acid battery
Warranty
3 years manufacturer′s defect warranty

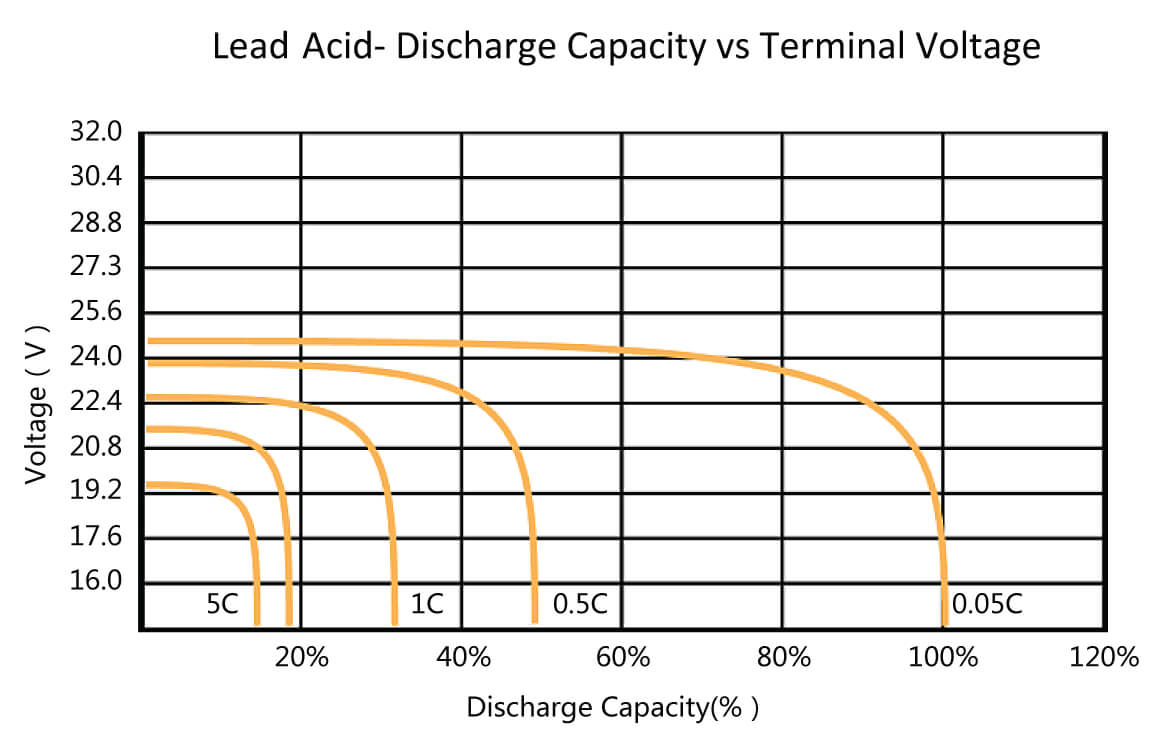

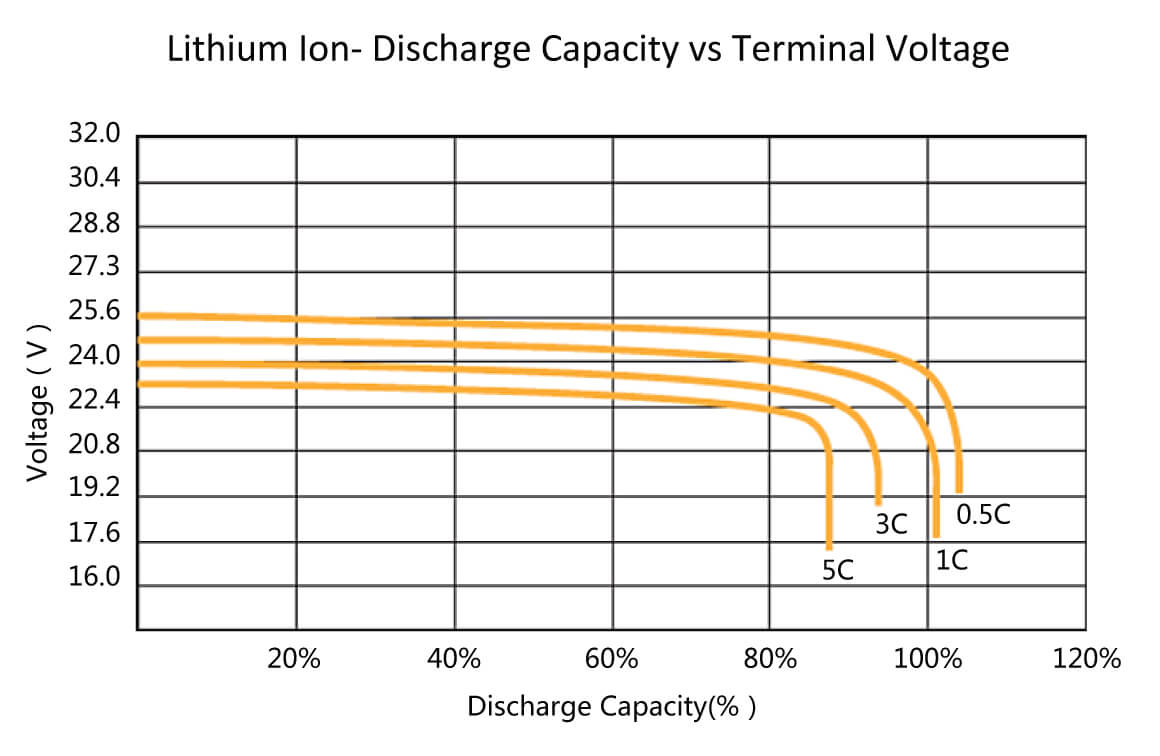

Discharge Capacity Analysis
Application
This model is used widely in the following applications:
UPS, military, computer backup, emergency lighting, security system backup, engine starting, robots, industrial equipment, RV, telecommunication, marine, small electronics, solar backup, large off grid energy storage, and other deep cycle applications.
UPS, military, computer backup, emergency lighting, security system backup, engine starting, robots, industrial equipment, RV, telecommunication, marine, small electronics, solar backup, large off grid energy storage, and other deep cycle applications.
Product Specifications
Items | Unit | CW-LFP1207 | CW-LFP1210 | CW-LFP1220 | CW-LFP1250 | CW-LFP12105 | CW-LFP12150 | CW-LFP12210 | CW-LFP12315 | CW-LFP24105 |
|---|---|---|---|---|---|---|---|---|---|---|
Cell Model | 26650 | 26650 | 26650 | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | |
3.2V 3.3Ah | 3.2V 3.3Ah | 3.2V 3.3Ah | 3.2V 50Ah | 3.2V 105Ah | 3.2V 150Ah | 3.2V 210Ah | 3.2V 315Ah | 3.2V 105Ah | ||
Combination Mode | 2P4S | 3P4S | 6P4S | 1P4S | 1P4S | 3P4S | 2P4S | 3P4S | 1P8S | |
Nominal Capacity | Ah | 6.6 | 9.9 | 19.8 | 50 | 105 | 150 | 210 | 315 | 105 |
Rated Energy | Wh | 85 | 127 | 253 | 640 | 1344 | 1920 | 2688 | 4032 | 2688 |
